ELEGANT DESIGN MEETS DURABILITY
Manufactured from high-quality stainless steel 1.4404/316l and electropolished to a mirror-smooth finish, the PILOT 3rd Gen combines aesthetics and durability. With its rimless appearance and extremely flat profile, the HMI system blends seamlessly into any modern production environment.
MODULAR STRUCTURE
The PILOT 3rd Gen offers a flexible modular design that can be customised to your requirements. With different display sizes, optional RFID readers and versatile connection options, it enables customised solutions for a wide range of applications. The backwards-compatible device carriers and the new, ergonomic keyboard round off the modular concept perfectly.
EX APPROVAL ACCORDING TO ATEX/IECEx: Perfect for demanding environments
The PILOT 3rd Gen meets the highest safety standards ZONE 2/22 and HazLoc Class 1/DIV 2 Group A-D (in certification). With IP66 and IP67 protection, it is also dust and waterproof and guarantees maximum robustness.
VERSATILITY AND COMPATIBILITY
The PILOT 3rd Gen is fully backwards compatible with all existing device carriers and allows accessories to be connected via the two M32 ports. The capacitive function buttons include Power ON/OFF, a touchscreen lock function for cleaning mode and a customisable button that can be configured to suit your needs.
TWO MODELS FOR MAXIMUM FLEXIBILITY

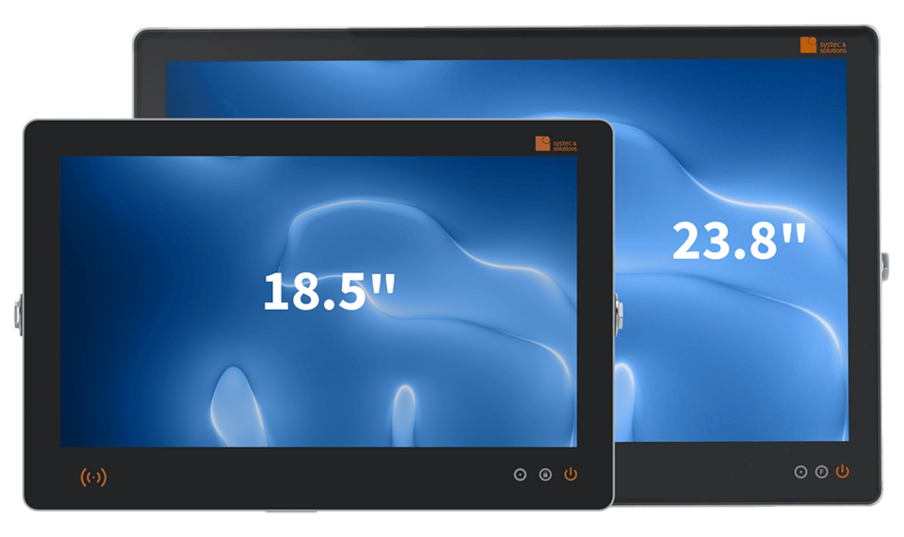

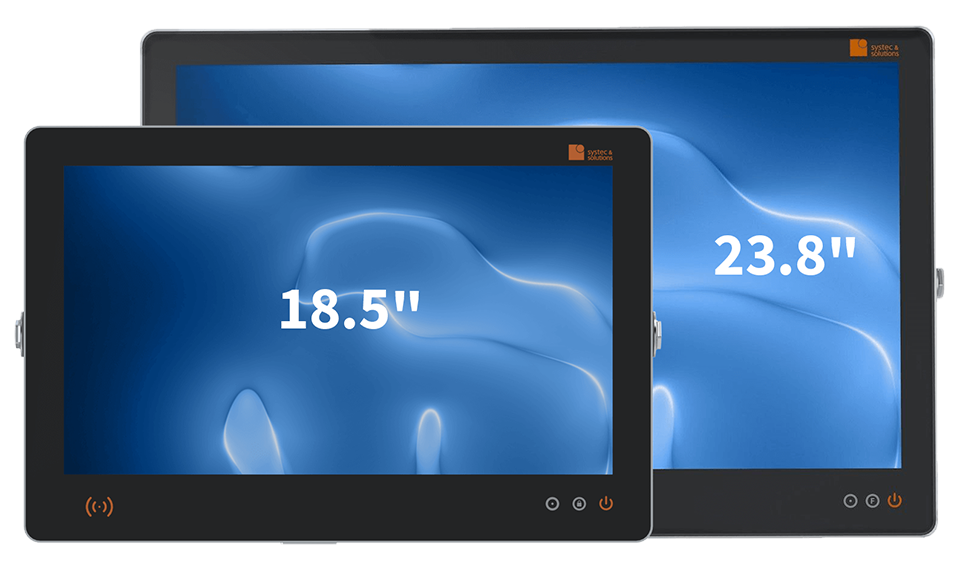

The PILOT 318 with an 18.5-inch display and the PILOT 324 with a 23.8-inch display offer you the choice between two perfectly dimensioned sizes without compromising on the size of the housing. Despite the larger displays, the housing remains almost identical to the predecessor models PILOT 217 and PILOT 221 - a real space miracle!
KEYBOARD NG
The glass keyboard sets new standards in user-friendliness. The capacitive keys with acoustic feedback ensure a pleasant, precise typing experience, while the large multi-touch touchpad remains intuitive to use even when wearing cleanroom gloves. Thanks to the robust stainless steel housing and easy-to-clean glass surface, it meets the highest hygiene standards. Optionally available: RFID/NFC/SmartCard reader for maximum flexibility.
KEYBOARD NF
Membrane keyboard with short-travel keys and tactile feedback. Includes an optimized touchpad for cleanroom gloves. Optional RFID/NFC/SmartCard integration. Stainless steel housing with IP67 protection for demanding environments
VARIANTS
- Available in 18.5’ and 22.8’
- Configurable as PC, monitor or thin client
- Preconfigured variants: ENDPOINT, ALLROUND, PERFORMANCE und MONITOR
- Customised configurations possible
TECHNICAL DATA OF OUR VARIANTS
ADVANTAGES AT A GLANCE
Modern, flat design with a rimless look- Robust stainless steel housing (1.4404/316l) with electropolished finish
- High protection class: IP67/NEMA 6 as standard
- Flexible modular design for customised solutions
- Optional integrable RFID reader for more security and flexibility
- Capacitive function keys - Power ON/OFF, touchscreen lock, customisable
- Backwards compatible with existing device carriers
- Ergonomic keyboard with customised shortkeys and multi-touch touchpad
- Different display sizes: 18.5’ and 23.8’
ALL VARIANTS COMPATIBLE WITH
WE ARE READY!
Our HMI systems are PAS-X Ready, IGEL Ready and Thinmanager Ready.
ACCESSORY

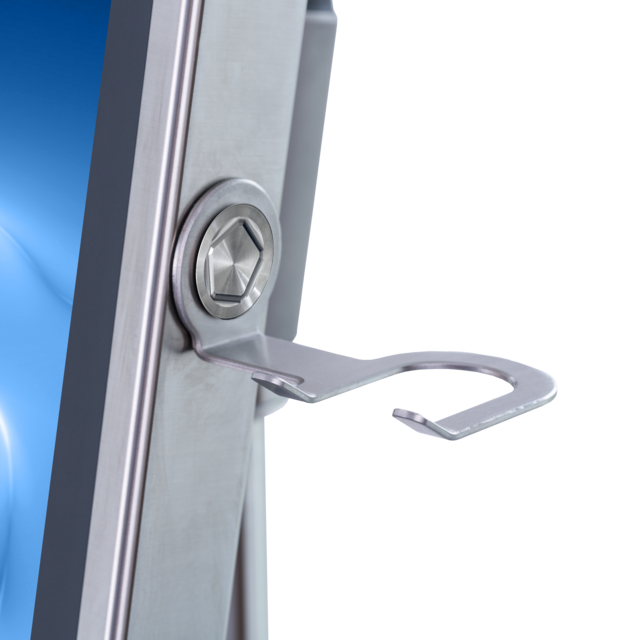

Scanner cradle holder
Scanner fork

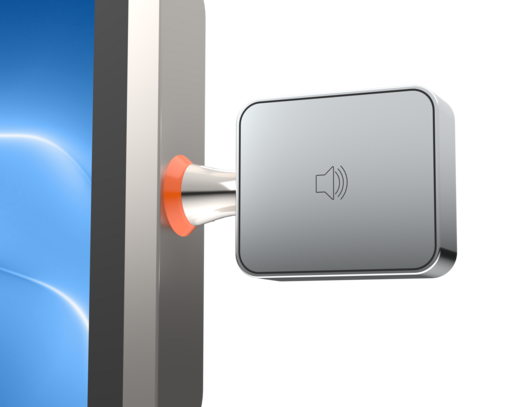

Loudspeaker
Tilting keyboard tray
Grab rail
WLAN antenna
Cable manager
READY FOR MORE?
Our team will be happy to advise you on finding the perfect solution without obligation. Do not hesitate to contact us.
