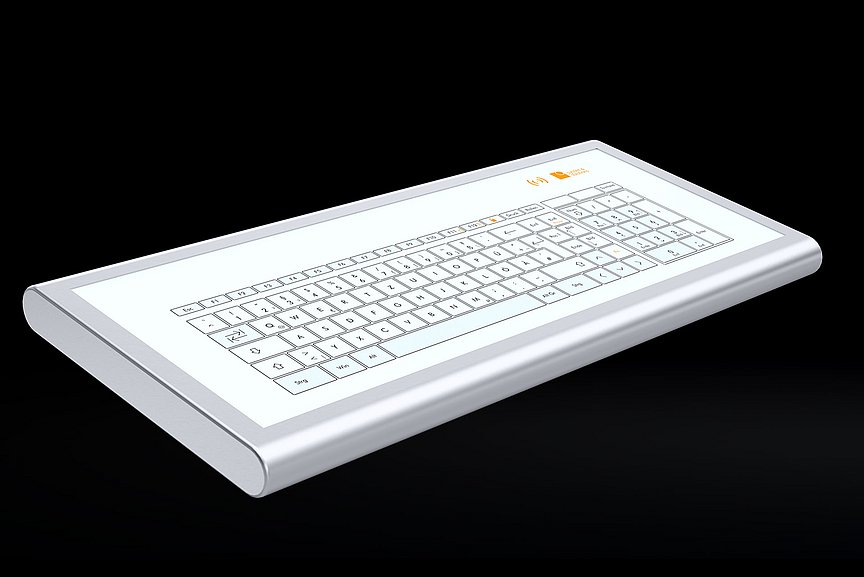

TNG keyboard

TNG

Table unit, attachment via CLICK HINGE with single and dual torque hinges
Material: Stainless steel, glass surface

Equipment

Touchpad (integrated)With a capacitive operating principle: tested with different thicknesses of cleanroom gloves
RFID/NFC/smart card readerOptionally with integrated RFID/NFC/smart card reader (compatible with Nymi Band)
Keyboard layoutmany country layouts available as standard, others available on request
Key specificationCapacitive keys with acoustic feedback, cleaning function, auto-lock (optional)
Keyboard surfaceGlass (back-printed), laminated protective film (optional)





Physical features

ConnectionUSB 2.0
Dimensions (approx. mm)W 517 / H 30 / D 230
Weightapprox. 3.9 kg
CasingStainless steel 1.4301, 1.4404 (optional)
SurfaceSanded, glass-bead blasted (optional)
Protection classIP65
ApprovalCE, FCC/ISED (optional)
© Systec & Solutions GmbH | Germany, 2024
Status 20.11.2024 | Subject to changes and errors. May differ slightly from what is shown. | © Systec & Solutions GmbH
